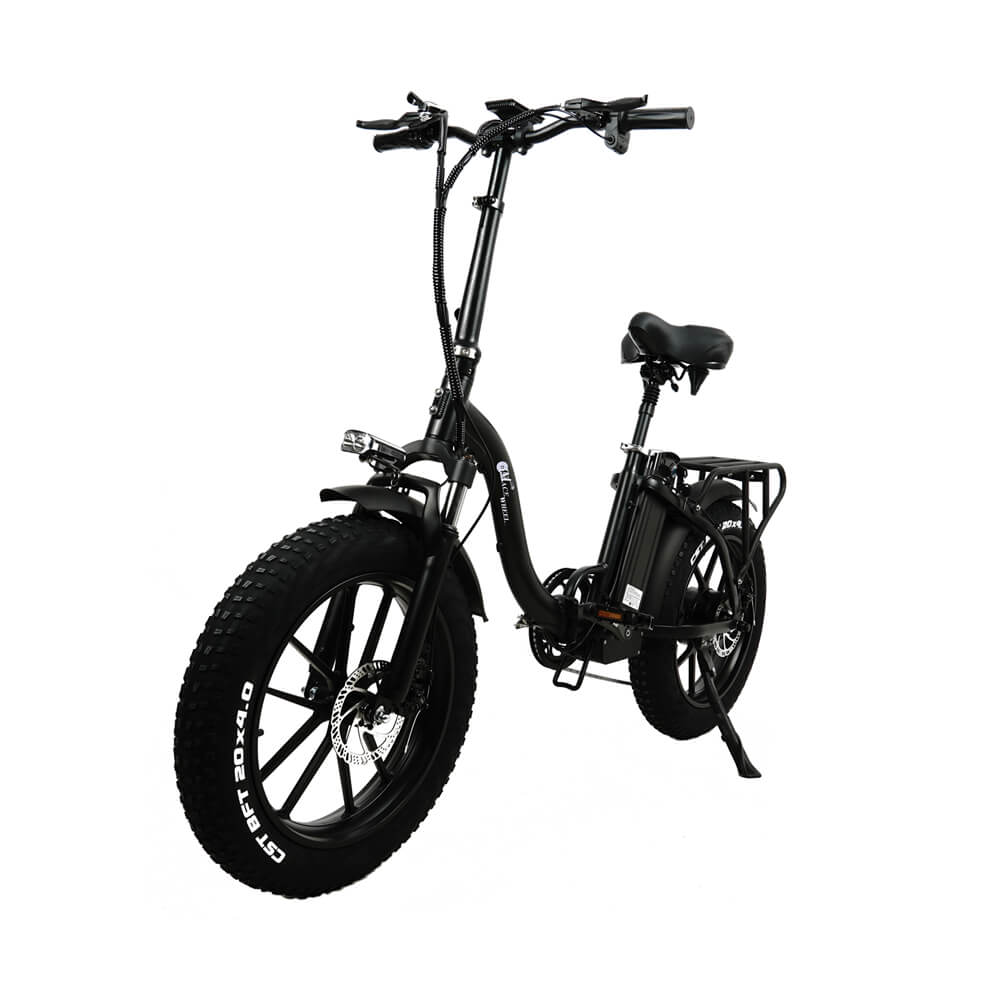

Trekbike Y20 Plus 20Ah Samsung Battery Support App|Step Through Fat Tire Ebike City Folding Electric Bike

Trekbike Y20 Plus 20Ah Samsung Battery Support App|Step Through Fat Tire Ebike City Folding Electric Bike

¥1,411.37 CNY
¥1,580.87 CNY ¥1,411.37 CNY
Sale Sold out
Taxes included.
Y20

Electric Step Through Bike CMACEWHEEL Y20 Plus 2024

750W Brushless Motor

25km/h (Can be Released to 45)

48V 20Ah(Samsung) Li-Battery

New Color Display(support App)

60-110km by Assistant Model

30 Degree Gradeability and turn light

What CMACEWHEEL Y20 Plus Step-Through Fat Tire EBike Have For You

cmacewheel y20 folding

Folding Ebike

Y20 electric step-through bike is 95cm long, 75cm high, and weighs about 30KG after folding.

And, For an off-road electric moped with 4.0 wide tires,  it is already very compact after folding.

As well, the strong power will take you to enjoy the fun of traveling through the jungle and exploring the wild.

cmacewheel fat tire

4.0 Big Wheel

CMACEWHEEL Y20 has 4.0 wide tires. And, it adds an extremely cut-resistant and wear-resistant material to the sidewalls of selected mountain tires.

As You know,  this densely woven fabric is lightweight and highly flexible. So, to ensure that the performance of the tire is not affected by the excellent grip, the pattern design provides good grip and stability,

Also, the tread design is deep and wide, and the drainage is good. It is very suitable for driving on snow, mountain, and rugged roads, and even hunting.

samsung battery cells

 Battery

CMACEWHEEL Y20 plus has a high-performance 20Ah lithium battery, which is used Samsung Battery Cells.

And, enhanced technology extends battery life and runtime.  The standard charging current of 4A is put into the professional battery intelligent management system, which is safe to use.

Of course, the 20Ah battery will go farther than other options .

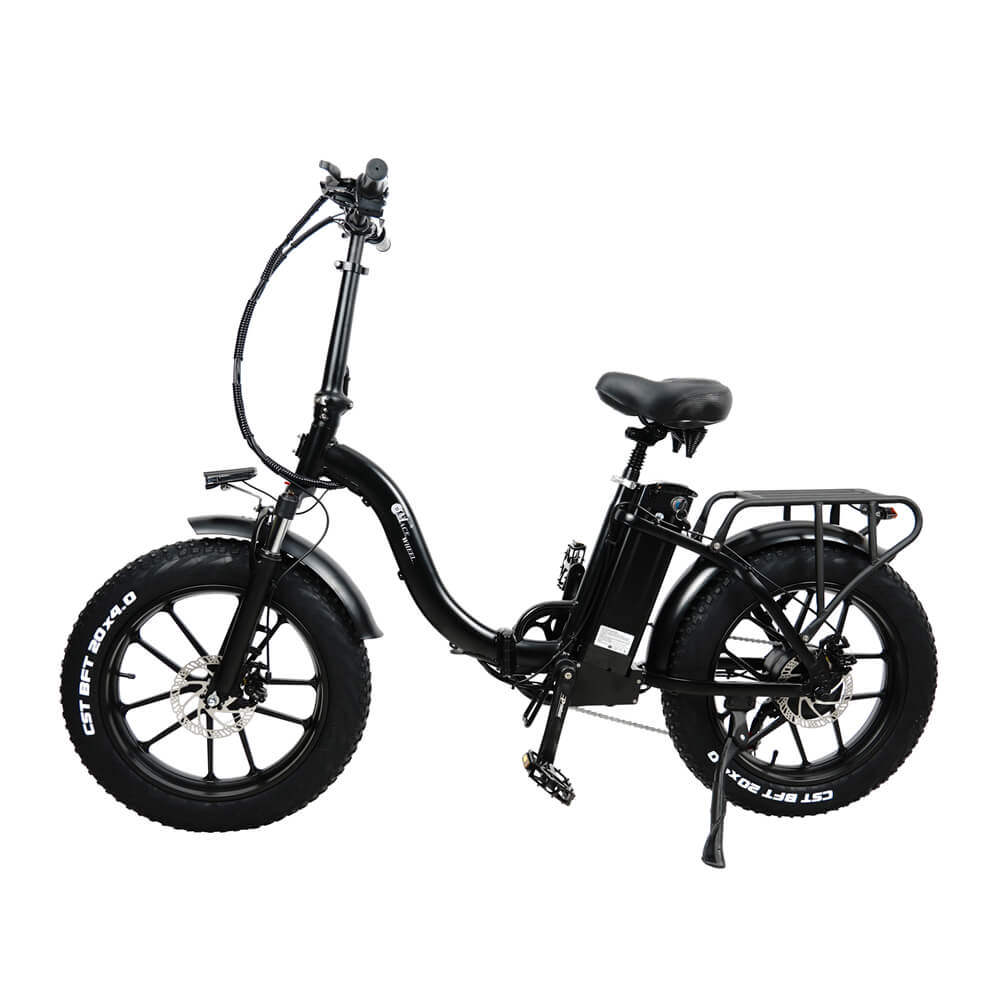

step through fat tire ebike

Design

Y20 Electric Step-Through Bike, which is an electric bicycle with a low beam, and the rider can easily get on and off the bike through the frame in the most upright riding position.

So, when you are going to be formal, when women are in dresses or skirts, and men are in suits, getting on and off the ebike is effortless. so, It is very suitable for women and older adults for entertainment and daily commuting. It can make every ride very comfortable and fashionable.

cmacewheel 750w motor ebike

Motor

CMACEWHEEL Y20 Plus 750@ Equipped with 48V 750W high-speed brushless motor, increases stronger hill-climbing power, provides more than enough to power your daily commute, a cruise on the mountain, or a meander along your favorite trail.

Well, Under ideal conditions, rides up to 45 km/h.

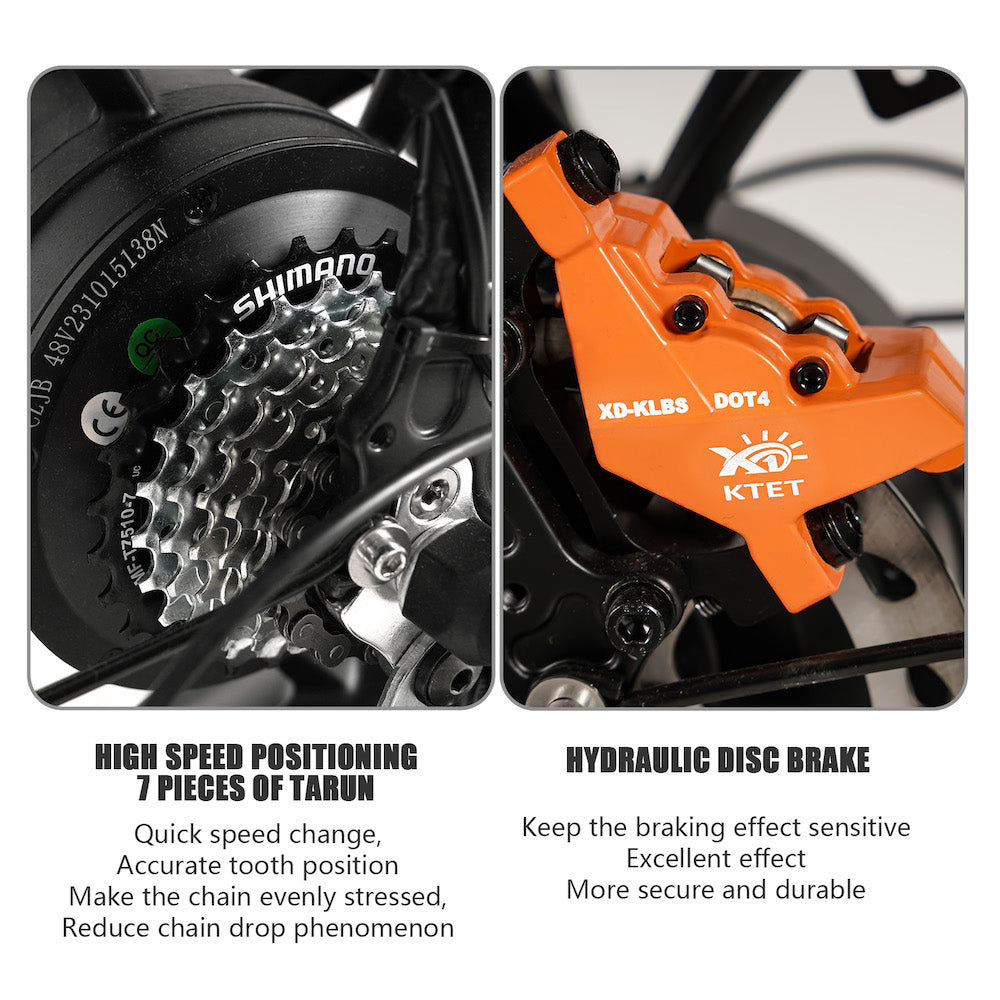

image for ktet brakes

Brakes

Firstly, the 110 large drum brakes front and rear, shorten the braking distance, ensure greater stability and safety.

Indeed, mechanical disc brakes can make braking easier and more effective. It is very convenient to use for beginners.

And Now, You upgraded it to hydraulic brakes for some options to get better braking.

7 speed gear

Transmission

The 7-speed Shimano system is the standard transmission mechanism mentioned by many riders.

Well, Riders can adjust the bike’s gear according to personal preference to adapt to different road conditions, such as tilt, bumps, or other difficulties.

So, the 7-speed Shimano bike can travel on different terrains. The lower gears make it easier to pedal, and the higher gears make it easier to move downhill.

y20 plus suspension fork

Fork

The high-strength shock absorber front fork allows you to be more relaxed and comfortable when riding, and no longer afraid of bumps.

Besides, the lock switch can be manually locked or opened depending on riding conditions. The separate fork-shaped bridge design makes the outer tube of the front fork stronger and effectively prevents dust pollution during riding.

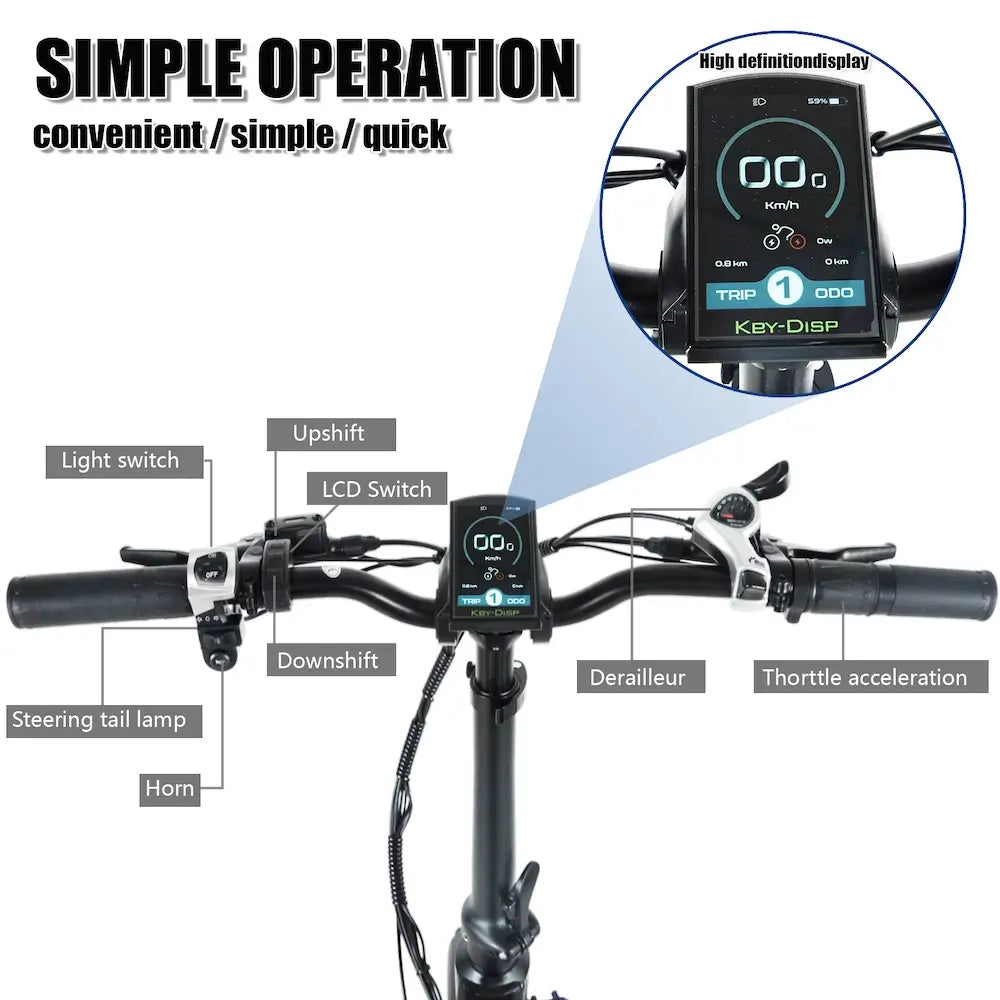

Display

Our electric step through bike -cmacewheel Y20,  is equipped with a new color instrument yolin or kingmeter from 2022.

As you know, yolin is very superior in technology.  As to speed display, it includes real-time speed “RT SPEED”, “MAX SPEED”, average speed “AVG SPEED”, and Km/h or mile/h. The new color display can be set according to customer habits.

Also, It has an intelligent battery indicator that provides stable battery reminders through an optimization algorithm.

In addition, Yolin has a 5levels of backlight brightness so you can change it to be a comfortable brightness at night. And it still has a Mileage display, Output power indication, Walk assist function, Speed measuring magnets number adjustment, and so on.

You know, the display is very important for an E-bike. So we upgraded it to be better and better.

cmacewheel ebikes

Modes

You got three bikes on only one cmacewheel Y20

Pure electric fat bike

& Assisted e bicycle

& Normal bike.

Of course, You can choose the Pure Electric Bike mode to enjoy a long time of travel without pedaling. THREE RIDING MODES SWITCH EASILY for enjoyment.

P8 is the drive mode setting. The available drive modes are: 00→Pedal assist only, 01→Electric only, 02→Both Pedal assist and electric.

(Different display different setting, this is for Yolin display)

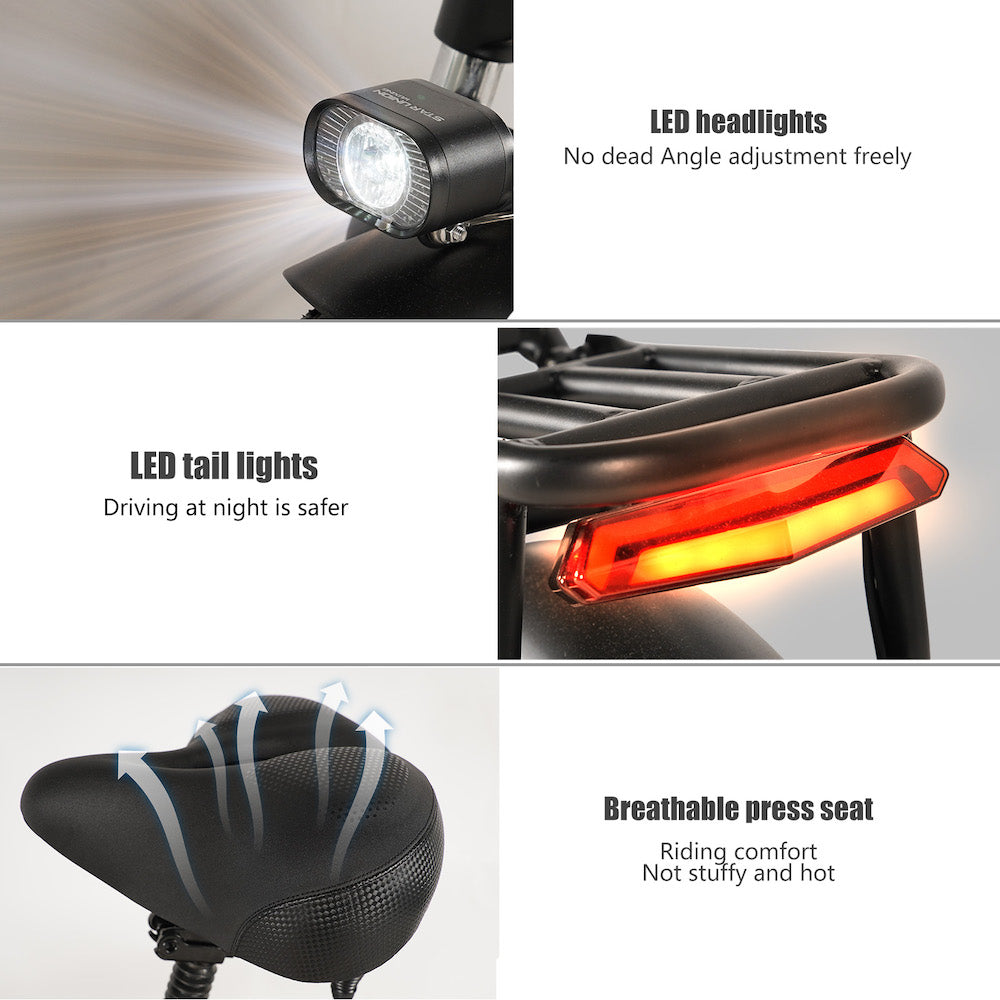

Tail light

Now the new version CMACEWHEEL Y2o upgraded the tail light to be a brake light and TurnLight integrated.

You know, the lights are very important for an e-bike at night, It has a front LED light, as usual, Now we get more lights for it.

In one word, you will love it if you want to ride it at night.

Saddle

The cmacewheel y20 electric bike saddle is 25cm long and 18cm wide.

And, It is composed of PU and turtle glue, filled with lightweight foam, with a decompression function, and PU has a good waterproof effect.

You see, the ED tower spring in the saddle base acts as a shock absorber, helping to eliminate road or surface vibrations that are usually directly transmitted to the spine. Ensure more balance and comfort when driving on off-road roads.

SADDLE SIZE: 270mm x 250mm, weight: 479 g / 16.9 oz.

Step Through Fat Tire eBike Y20 plus Technical Specifications

Brand CMACEWHEEL
Model Y20 plus
Frame Material Aluminum Alooy
Color Black
Battery Voltage 48V
Charger Voltage 54.6V
Charger Plug EU
Motor 750W
Assist Level 5Levels
Riding Mode Assist

Electric

Both
Tire 20*4″
Brakes Optional
Gradability 30
N.W 30.6Kgs
G.W 38.25Kgs
Charge Time 5-8Hours
Max Speed 25km/h(can be released)
Range 60-110km(Assist)

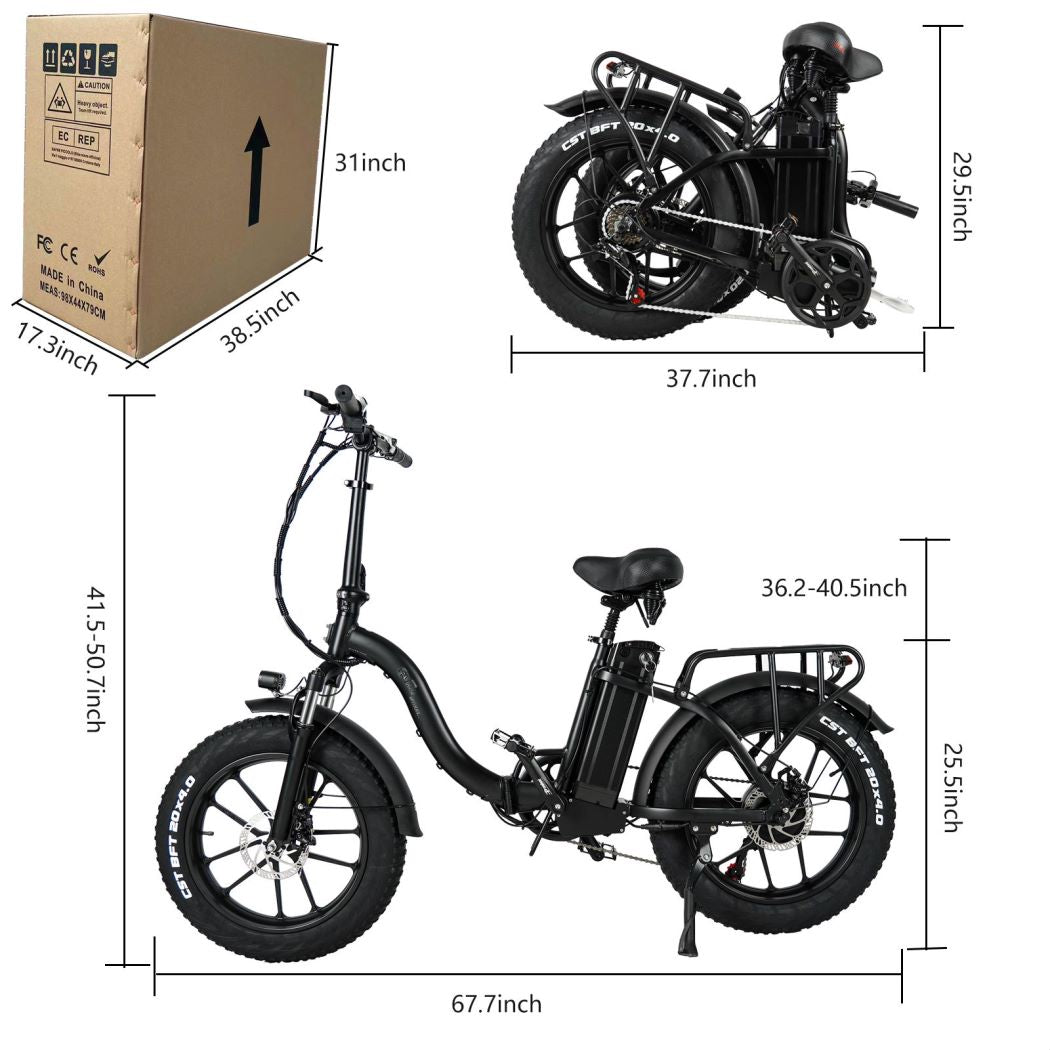

Packing Mode Folding
Pack size 98*44*79cm
Folding size 96*44*75cm
Max Loaded 150Kgs
Rear Seat Load 50Kgs
Controller Lishui
Vehicle Length 172cm
Shaft Length 114cm
Seat Height 92-103cm
Handle bar 105.5-129cm
Rear Pack 65cm

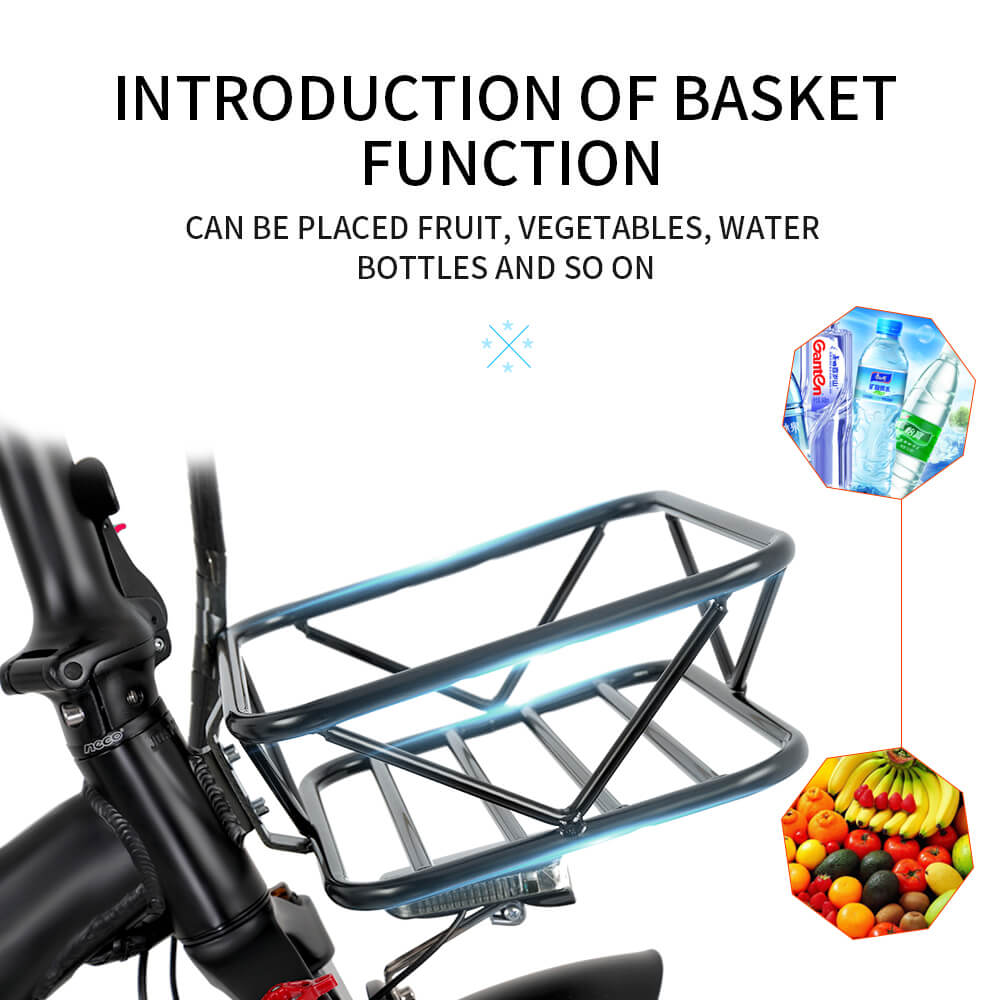

Basket Yes
Phone holder Yes
Certification CE
Throttle Right twist
Suitable More than 160cm
Tool Bag Yes

More Detail Photos for Cmacewheel Y20 Plus

long metal fenders for cmacewheel y20 plus
new light for cmacewheel ebikes
folding pedals
